176一、零件基本信息
| 用户名称 |
|
所属区域 | ||

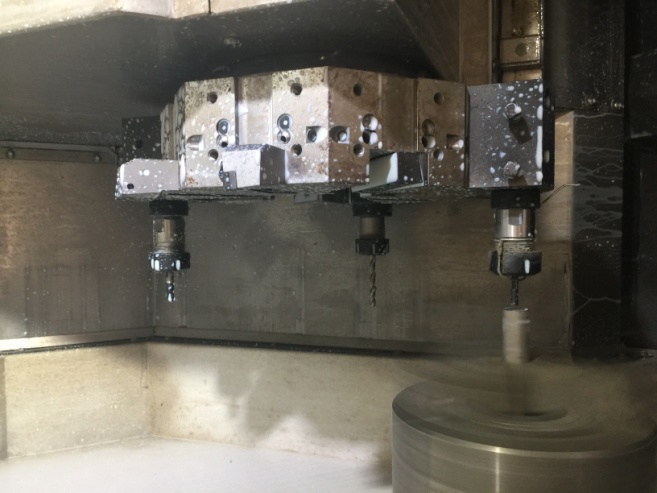

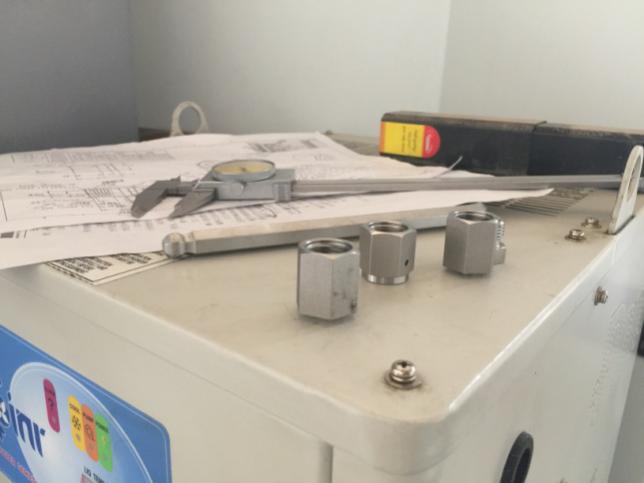

零件名称 | 密封阀 | |
所属行业 | 电机零部件 | |
零件材料 | 316L | |

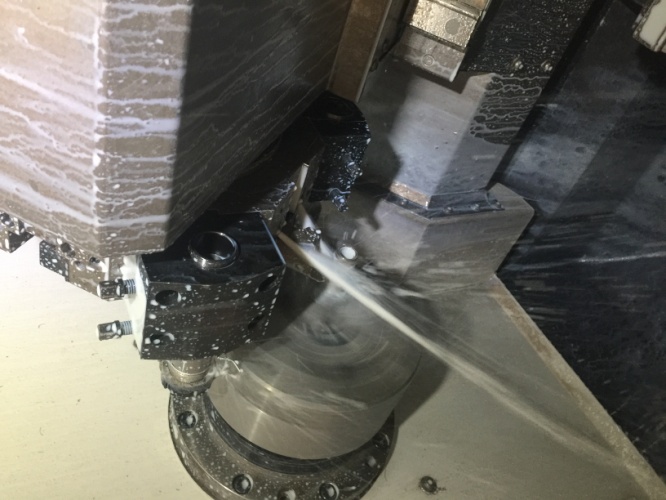

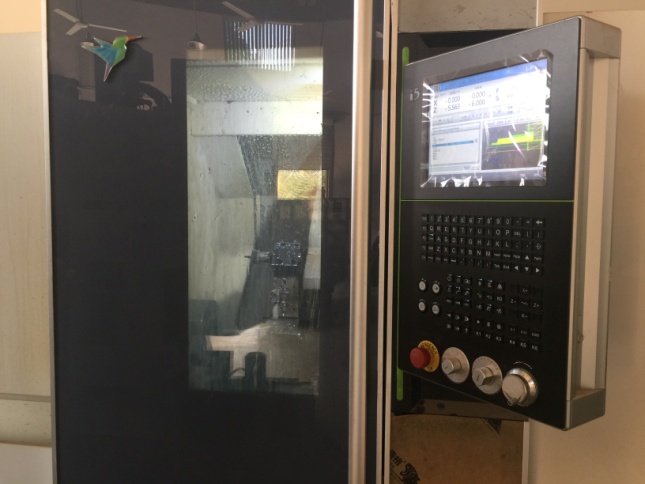

设备型号 | I5T3.3 | |
设备系统 | I5系统 | |
夹具单位 | ||
加工日期 | 2016-11-18 |
切削参数 | |||||||
工步号 | 工步内容 | 工艺设备 | 主轴转速 | 工作进给 | 切削深度 | 进给次数 | 工时 |
r/min | mm/min | mm | s | ||||
OP10A-1 | 平端面车30度外倒角 | R0.4外圆刀 | 1000 | 0.08 | 2 | 2 | |
OP10A-2 | 定点 | ϕ 2.5中心钻 | 500 | 0.1 | 1.5 | 1 | |
OP10A-3 | 钻 ϕ8内孔 | ϕ 8钻头 | 450 | 0.07 | -25 | 25 | |
OP10A-4 | 车12.953内孔留量 | ϕ 6内孔刀 | 800 | 0.1 | 2 | 15 | |
OP10A-5 | 车1.41螺纹 | 1.5螺纹刀 | 450 | 1.41 | 0.85 | 16 | |
OP10A-6 | 精车12.953内孔 | R0.2外圆刀 | 1000 | 0.1 | 0.1 | 1 | |
OP10A-7 | 精车1.41螺纹 | 1.5螺纹刀 | 450 | 1.41 | 0.1 | 1 | |
OP10B-1 | 切断 | Φ3切断刀 | 500 | 0.05 | 8 | 20 | |
OP10B-2 | 掉头 | ||||||
OP10C-1 | 车18.958外圆30度角 | R0.4外圆刀 | 1200 | 0.05 | 2 | 2 | |
OP10C-2 | 内孔倒角 | ϕ 6内孔刀 | 800 | 0.05 | 0.3 | 1 | |
工艺问题：美制非标螺纹
316L 黏削
G90G95
G54
GOTO N7
N1
G90G95
M08
T6D1
M03S1000
G00X23Z2
G00Z0.1
G01X-1F0.05
G00Z0.5
G00X23
G01Z-1.2
G01X22.5
G01X18.5ANG=-60
G01X-1
G00Z0.5
;G00X23Z2
;Z-2
;G01X22
;G01X19ANG=-30
;G00X23Z2
;Z-2
;G01X22
;G01X18ANG=-30
M09
G00X150Z200
M05
M01
N2
T1D1
M08
M04S430
G00X0
Z2
G01Z1.9F0.07
G01Z-1F0.07
G00Z2
G17
CYCLE83 (3, 0, 2, -25, 0, 0, 0, 1, 0, 0, 1, 1)
G18
G00Z120
M09
M05
M01
N3
M08
T3D1
M04S600
G00X8Z3
CYCLE95 ("888", 0.1, 0, 0.05, 0, 0.07, 0.05, 0.05, 3, 0, 0, 0.1)
G00Z10
G00X150Z150
M05
M09
M01
N4
T7D1
M08
M04S400
G00X12.754Z3
CYCLE97 (1.41, 0, 3, -10.854, 12.754, 12.754, 0, 0, 0.8755, 0.1, 0, 0, 17, 1, 2, 1, 0.1, 0)
G00Z50
G00X150Z150
M05
M09
M01
N5
T3D1
M04S700
G00X16.186Z3
G01X16.186
G01Z0F0.05
G01X14.986Z-0.6
G01Z-1.5748
G01X12.954
G01Z-14.224
G01X12.827
G01Z-17.4752
G01X10.344
G01X9.144Z-18.0752
G01Z-21
G01X8.8
G00Z50
G00X150Z150
M05
M09
M01
N6
T7D1
M08
M04S400
G00X12.754Z3
CYCLE97 (1.41, 0, 3, -10.554, 12.754, 12.754, 0, 0, 0.8755, 0, 0, 0, 16, 0, 4, 1, 0.1, 0)
G00Z50
G00X150Z150
M05
M09
M01
N7
M08
M04S450
T2D1
G00X25Z-24.2
G01X22F0.05
G00X23
G01X21
G00X22
G01X20
G00X23
G01X19
G00X20
G01X18
G00X22
G01X17
G00X18
G01X16
G00X19
G01X15
G00X16
G01X14
G00X18
G01X13
G00X15
G01X12
G00X17
G01X11
G00X12
G01X10
G00X12
G01X9
G00X13
G01X8
G00X9
G01X7
G00X8
G01X6
G00X7
G01X5
G00X6
G01X4
G00X5
G01X3
G00X4
G01X2
G00X25
G00X150Z150
M09
M05
M02
G00X8Z3
G01X16.186
G01Z0
G01X14.986Z-0.6
G01Z-1.5748
G01X12.954
G01Z-14.224
G01X12.827
G01Z-17.4752
G01X10.344
G01X9.144Z-18.0752
G01Z-21
G00X8
GOTO N2
N1
G90G95
T6D2
M08
M03S1000
G00X23Z2
G00Z0
G01X6F0.09
G0Z0.5
G00X23Z2
CYCLE95 ("666", 0.4, 0, 0.1, 0, 0.1, 0.06, 0.08, 5, 0, 0, 0.1)
G00X150Z150
M09
M05
M02
M01
N2
M8
T3D2
G90G95
M04S800
G00X9.144Z2
G01X9.234F0.06
G01Z0
G01X9.144Z-0.3
G00Z1
G00X9.434
G01Z0
G01X9.144Z-0.3
G00Z2
G00X9.634
G01Z0
G01X9.144Z-0.3
G00Z1
G00X9.834
G01Z0
G01X9.144Z-0.3
G00Z1
G00X10.034Z2
G01Z0
G01X9.144Z-0.3
G00Z1
G00X10.344
G01Z0
G01X9.144Z-0.3
G00Z1
M04S1000
G00X10.344
G01Z0
G01X9.144Z-0.3
G00Z50
G00X150Z150
M09
M05
M02
