150一、零件基本信息
| 用户名称 | |
所属区域 | ||
零件名称 | 传感器底座反面 | |
所属行业 | 汽车零部件 | |
零件材料 | AL6061 | |
设备型号 | I5M1.4 | |
设备系统 | I5系统 | |
夹具单位 | 自制 | |
加工日期 | 2016-07-21 |
切削参数 | |||||||
工步号 | 工步内容 | 工艺设备 | 主轴转速 | 工作进给 | 切削深度 | 进给次数 | 工时 |
r/min | mm/min | mm | s | ||||
OP10-1 | 粗铣 | 10000 | 800 | 0.5 | 12 | ||
OP10-2 | 倒角 | 10000 | 300 | 1 | 12 | ||
OP10-3 | 精铣 | ϕ 2.5平刀 | 10000 | 2000 | 1 | 12 | |
OP10-4 | 钻 ϕ 2 | 孔 | 8000 | 350 | 1 | 12 | |
OP10-5 | 钻 ϕ 2.4 | 10000 | 200 | 12 | |||
OP10-6 | 钻Φ2.6 | 9000 | 200 | 2 | |||
OP10-7 | 粗铣平面 | ϕ 6粗刀 | 10000 | 2000 | 2 | ||
OP10-8 | 光面 | ϕ 4光刀 | 10000 | 200 | 2 | 12 | |
OP10-9 | 铣平面 | 2000 | 200 | 35 | 12 | ||
精角 | ϕ 3倒角 | 2000 | 1500 | 20 | 4 | ||
OP10-11 | ϕ 2.5平刀 | 10000 | 30 | ||||
OP10-12 | 攻丝 | ϕ 3丝锥 | 800 | 400 | |||
保证8.85加减0.02 8.66加减0.02 保证平行度垂直度 装夹两面

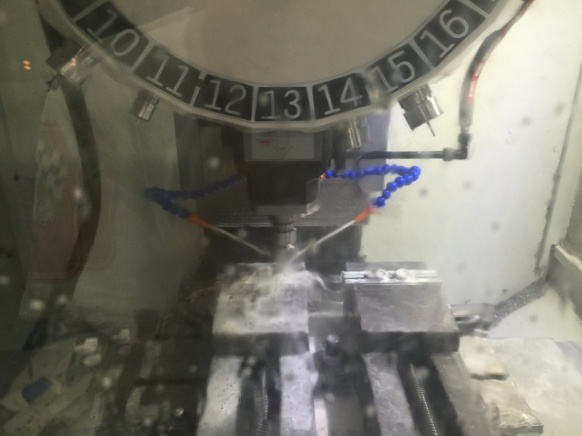

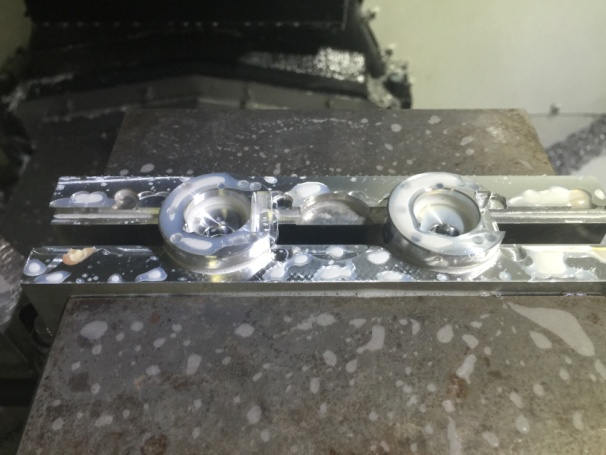

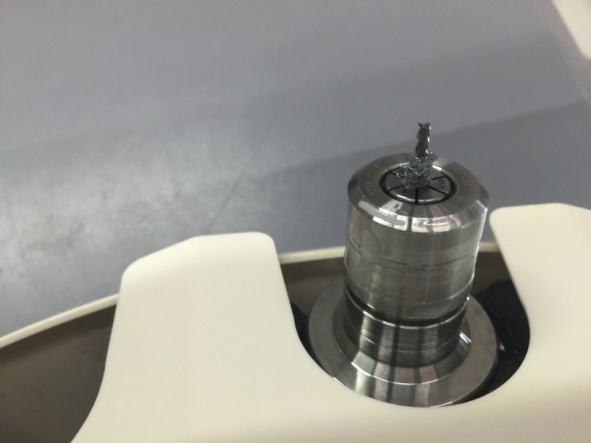

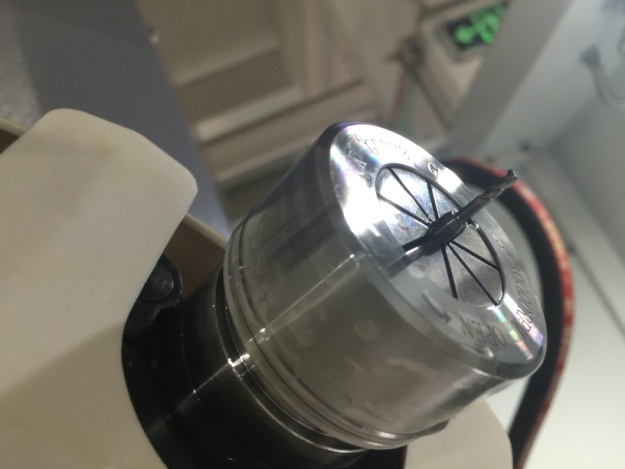

五、用户现场照片：零件、工装夹具、特殊刀具、现场照片等
