168一、零件基本信息
| 用户名称 |
|

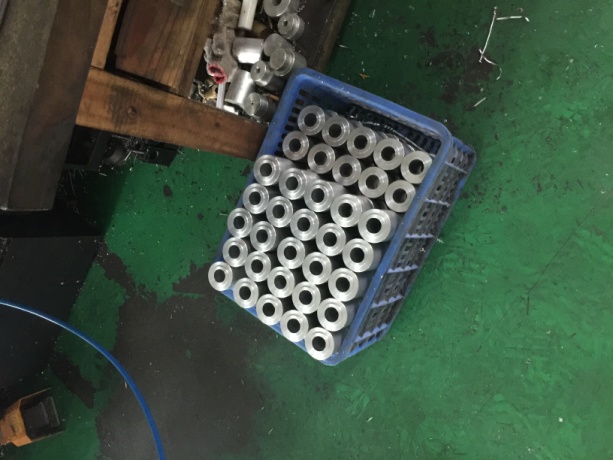

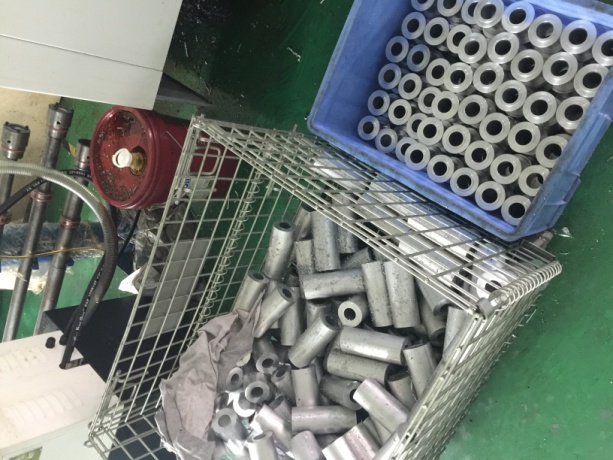

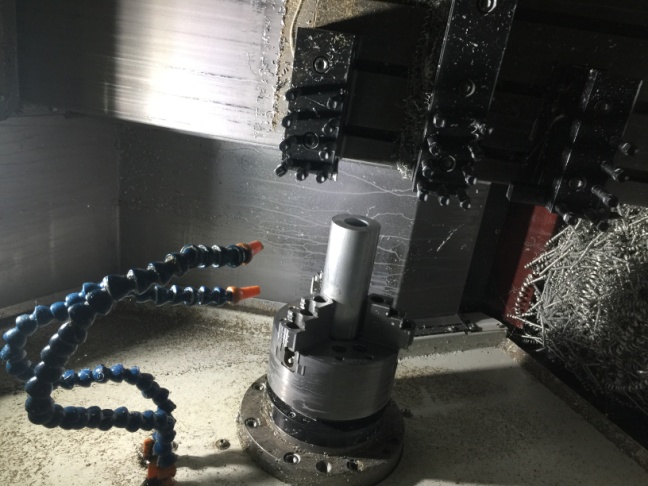

所属区域 | ||
零件名称 | 五十铃差速器壳 | |
所属行业 | 汽车零部件 | |
零件材料 | 铝 | |
设备型号 | I5T3.1 | |
设备系统 | I5系统 | |
夹具单位 | 自制 | |
加工日期 | 2016-10-17 |
切削参数 | |||||||
工步号 | 工步内容 | 工艺设备 | 主轴转速 | 工作进给 | 切削深度 | 进给次数 | 工时 |
r/min | mm/min | mm | s | ||||
OP10A-1 | 切槽 | 槽刀 | 1000 | 0.08 | 2 | 12 | |

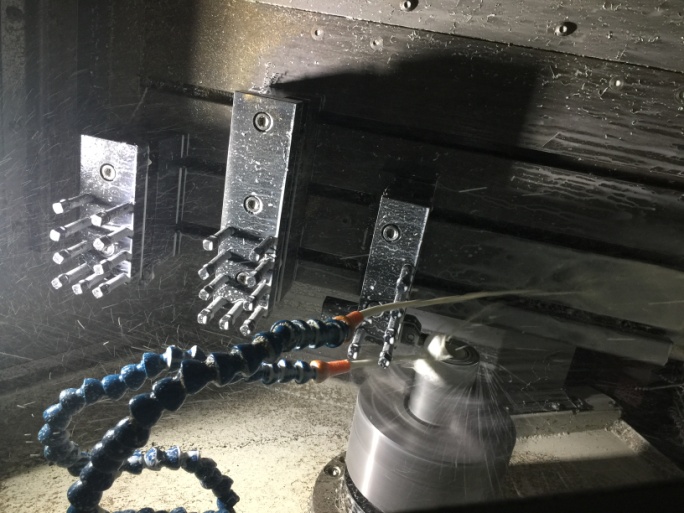

难点 外槽底粗糙度要求Ra 0.8
优化粗精切削量 ，采用切槽循环保证加工精度即表面质量
M08
G90G95
M03S1000
T1D1
G00X62
Z-1.4
G01X40.1F0.1
Z0
X27
G00X62Z1
Z-63.4
G01X50F0.08
G00X62
Z-61
G01X50F0.08
G04H0.01
G01X40F0.08
X41F0.24
G00X62
Z2
MIRROR X0
G00X-62Z2
CYCLE93 (-30, -63.4, 56.9, 9.95, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 3,0)
G500
G00Z1
X39
G01Z0F0.3
X40Z-0.5F0.1
Z-1.5F0.2
X58.3
X59.6Z-2.3F0.15
Z-8.8F0.2
X58.15Z-9.5F0.15
X40F0.2
Z-63.5F0.2
X58.3F0.2
X59.6Z-64.2F0.15
Z-71.65F0.2
G01X57F0.08
G04H0.02
G01X55F0.08
G04H0.02
G01X53F0.08
G04H0.02
G01X51F0.08
G04H0.02
G01X49F0.08
G00X62
Z-73.2
G01X57F0.08
G04H0.02
G01X55F0.08
G04H0.02
G01X53F0.08
G04H0.02
G01X51F0.08
G04H0.02
G01X49F0.08
G01X50F0.5
Z-71.65
G01X47F0.08
G04H0.02
G01X45F0.08
G04H0.02
G01X43F0.08
G04H0.02
G01X42F0.08
G04H0.02
G01X40.1F0.08
G01X50F0.5
Z-73.2
G01X47F0.08
G04H0.02
G01X45F0.08
G04H0.02
G01X43F0.08
G04H0.02
G01X42F0.08
G04H0.02
G01X40.1F0.08
G00X62
Z-70.8
G01X59.9F0.3
X58.3Z-71.5F0.1
X39.93F0.2
Z-72.5
X39Z-72.9F0.08
X27
G00X62
Z50
M03S2000
T2D1
G00X62
Z0
G01X27F0.15
G00X58Z1
G01Z-1.4F0.5
G00X60Z1
X56
G01Z-1.4F0.5
G00X58Z1
X54
G01Z-1.4F0.5
G00X56Z1
X52
G01Z-1.4F0.5
G00X54Z1
X50
G01Z-1.4F0.5
G00X52Z1
X48
G01Z-1.4F0.5
G00X50Z1
X46
G01Z-1.4F0.5
G00X48Z1
X44
G01Z-1.4F0.5
G00X46Z1
X42
G01Z-1.4F0.5
G00X44Z1
X40.1
G01Z-1.4F0.5
G00X42Z1
X39
G01Z0F0.35
X40Z-0.5F0.1
Z-1.5F0.2
X58
X60.5Z-3F0.1
G00X62Z120
M09
M30
